Certification:
1.We have abtained VDE,UL,CE,ROHS,ISO9000 Approal and SGS Audit
Supplier in China,We guarantee quality is the first:

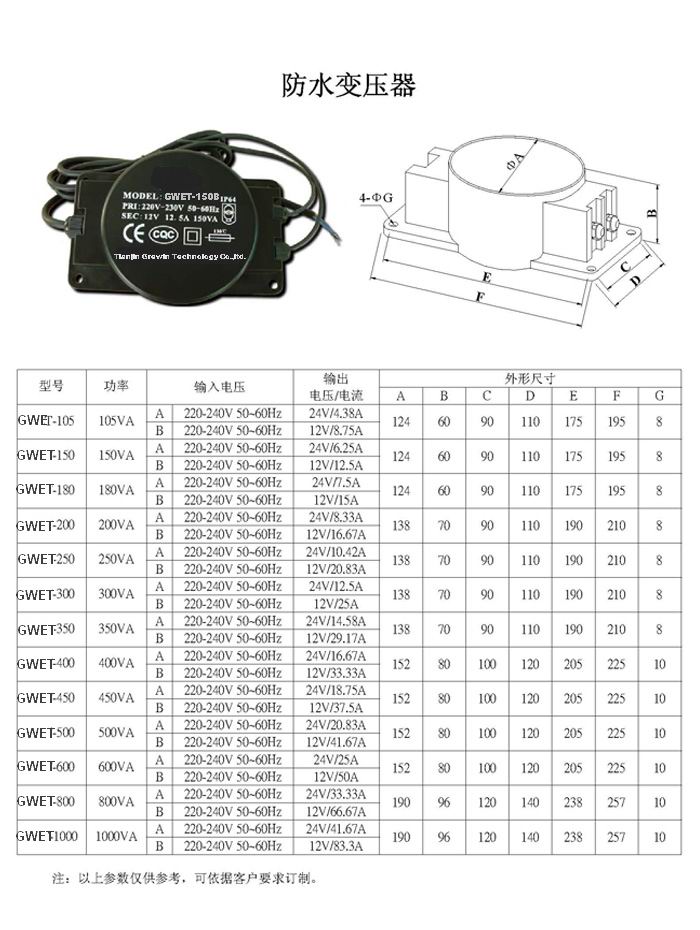

The dimension of the toroidal transformers:
220v 600va toroidal power transformer with constant voltage
Toroidal transformer models:
1. The following Outdoor waterproof Transformer in black colour is
rated 105VA-2000VA for devices 105VA-2000VA watts or less
Grewin' s garden waterproof transformers are light weight, highly
energy efficient water-safe making them ideal for outdoor lighting
& Christmas lights
- Splash Proof protection from water in all direction
- Approved safe with IP64 Rating for outdoor use
- Fully water proof fuse designed to eliminate the possibility of an
electrics shock (as defined in IEC standards 65 and 257)
- Included is a special safety fuse which eliminates the possibility
of electrocution.
- Waterproof toroial transformer with plug Application:
1. garden light
2. LED underwater lamp
3.LED Ground light
4.Outdoor power Supply
Advantages:
100% copper wire made
2.Toroidal style
3.plastic cover :ABS fire Material of withstand high temperatures
4.Epoxy resin
4.high performance insulation
5.Anti-corrosion, waterproof performance
Main parameters:
Input Voltage:AC 220V 230v 110v (Define the voltage)
Output voltage:AC 12V / 24V (Define the voltage)
Power range:105VA-1KVA
GWET-105 means 105VA in black cover and Australia plug .The power
range is between 105VA and 1000VA.
How to design Transformer ?
Transformer capacity is rated in Volt-Amps (VA) which is generally
the same as wattage (Watts).
Most loads are labeled with their proper operational voltage
(Volts), current (Amps),
frequency (Hz), and wattage (Watts or VA). When you need to design
a transformer,
we must know the mainly below parameters to be customized:GREWIN's
Custom
Transformers ,plz kindly check attached file:
GREWIN's Custom Toroidal Transformers
*Input volts: |
|
*Frequency: |
|
*Output volts: |
|
*VA rating: |
|
*Lead length:(inches) |
|
Maximum height: |
|
Maximum diameter: |
|
*Quantity required: |
|
Additional comments: | |
WHY CHOOSE US?
A.
1. Installation:
Horizontal (non-conventional-type base plate), sunk, side type, and
bridge.
2.Application:
Especially low-hum and low-dispersing construction
Low-level of induction
High-grade design casing possible
Statically shield winding and magnetical shield winding optional .
Be used widely such as audio equipment,communication,new energy
areas,Electrical control,Cable TV network etc.
3.Equipment:
Over 50 sets toroidal/annular/ ring coil winding machines, 3 EI
type transformer lines, 2 sets of vacuum annealing furnaces, A set
of nitrogen and hydrogen production equipment as below:
. Automatic Winding Machine
. Semi-automatic Winding Machine
. Toroidal Winding Machine
. Insert Lamination Machine
. Wave Soldering Machine
. Plastic Termal Ultraviolet Machine
. Domino Ink Jet Printing Machine
Transformer Multitester for High & Low Frequency
Layer Insulation Withstand Voltage Tester
4.Warning
Under no circumstances should both ends of the fixing bolt
simultaneously contact the metal chassis or framework as this would
create a potentially dangerous 'shorted-turn'.
5.Certificate
The certificate of our transformer has CE CQC RoHs UL
6.Note
The above-mentioned toroidal transformer is frequently-used, we can
also manufacture the products by customer design. And the
specification is for reference, if has the change further, please
take the material object as the standard.
7.GREWIN'S Dimension :External diameter: 55mm-300mm, height :13mm-130mm, Efficiency:
75-98%
we can design the appropriate products according to customers'
requirments such as installation dimension, input and output
voltage,power...etc.)
B.Dual 110V Power Transformer:
For the international market request, these types of the GREWIN
Transformers are designed into dual primaries for 110V. No matter
what about your local voltage is 110V or 220V, you should use them.
Below are the methods for using:
1.If you are using 110VAC(such as Taiwan, US), Please parallel the
two primaries 110V. Please pay attention to the terminals of 110V
must be short circuit, and the terminals of 0V must be short
circuit.
2.If you are using 220VAC(such as Hongkong, China Mainland, Europe),
Please series the two primaries. Please pay attention to one
terminals of 0V must be short circuit with another terminals of
110V.
3.GREWIN has various kinds of state-of-the-art equipment, which are
used in production, sampling and testing. Our equipments enable us
to produce good quality products efficiently.

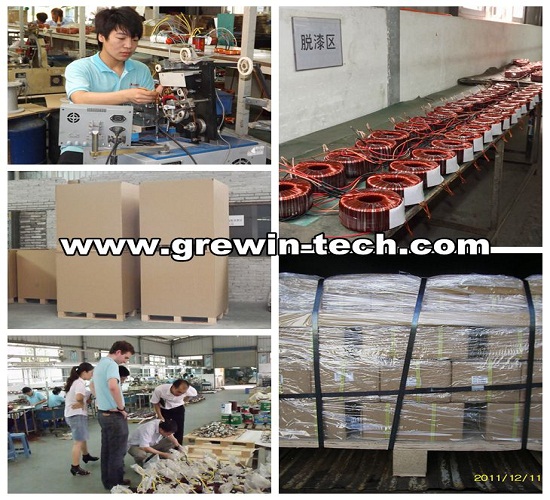

4.The following picture showed you about all finished toroidal
transformer production line and package with export standard carton
and strong pallets:
5.About us:
Tianjin Grewin Technology Co.,ltd. has always placed great emphasis
on our core business philosophy "Quality and Honesty First ". Due
to continuous innovative research and development, technical
standards and efficient.A professional leading and a main exporter
of a wide variety of electronic components in China for many Years.
6.Below is our toroidal transformer's catalogue with much advantages
in our market:
7.Acceptance of the Conditions:
All orders accepted by GREWIN are subject to the general sale
conditions herein set forth, which are understood and accepted by
the Purchaser when passing the order and/or upon receipt of GREWIN
invoices. Other conditions as well as any verbal agreement are
considered valid only if specifically confirmed by GREWIN in
writing.
8.Payment terms:
(1). T/T 100% or 50% deposit by T/T in advance, balance amount to
be paid 7 days before delivery.
(2). By irrevocable L/C at sight, to be issued immediately against
confirmed order.
(3). Payment by T/T, if order amount is less than USD 20,000.
9.Sample terms:
(1). Samples will be sent subject to advance payment to cover the
courier charge and samples charge.
(2). You are pleased to instruct your courier company to pick up
samples in our TianJin, China office at your expenses. For pick-up
details, please advise your courier company to contact us.
(3). Delivery time 3-10 working days.
