Quick Details

• Usage: audio amplifier,pool light,underwater LED lighting
• Phase: Single
• Coil Structure: Toroidal
• Coil Number: Autotransformer
• transformer with plastic cover: Round landscape light transformer
• usage: audio amplifier,pool light ,underwater LED lighting
• power: 30VA
• input: 0-220vac
• output: 0-24vac,12+12vac
• Model number: 35VA
• frequency: 50-60hz
• plastic cover: ABS fire Material of withstand high temperatures
• Encapsulated by iron shell: CE, RoHS, CESI and ISO9001

Product name: Encapsulated transformer 50hz 30VA Round landscape light transformer with CE approval

Waterproof electronic epoxy resin toroidal transformer China

1.Certification:

We have abtained VDE,UL,CE,ROHS,ISO9000 Approal and SGS Audit Supplier in China,

We guarantee quality is the first:

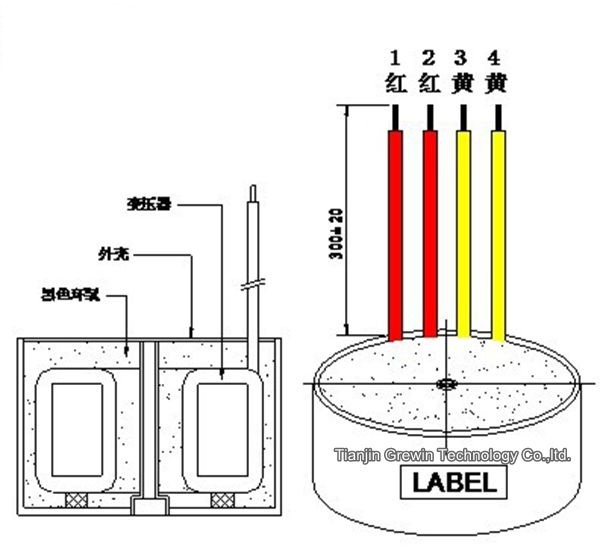

2.The following dimension is for the dimension of the round black cover waterproof toroidal transformer.

Themodel No. delegate different power(:eg: H-200 means for 200VA toroidal transformer.)

3.power range is between 25VA and 6000VA. 200va 600va 700va 800va 4kva 5kva Waterproof isolation toroidal transformer

4.Material: wire leads, screw , expoxy resin, round black color cover, 100% copper wire

and silicon core.

5.Test conditions:

Safety Standard: EN61558-2-6

Insulation resistance test(type test):Pri.~sec. 500V DC 100 MΩ Min.

HI-Pot Test(100% test):Pass our dielectric strength test, without any breakdown

Pri.~sec. AC3.75kVfor 5 seconds (leakage current 5mA MAX)

Ta=25℃Test by resistance method At rated load 4H.

PRI.& SEC. Windings' Temperature Rise 75℃

6.Major Measurement Facilities:

7.Application:

Grewin' s waterproof transformers to be used light weight, highly energy efficient water-safe making them ideal for outdoor lighting,outdoor power supply etc.

• Splash Proof protection from water in all direction
• Approved safe with IP64 Rating for outdoor use
• Fully water proof fuse designed to eliminate the possibility of an electrics shock(as defined in IEC standards 65 and 257)
• Included is a special safety fuse which eliminates the possibility of electrocution.
• 8.Advantages:
  (1)100% copper wire made
  (2).Toroidal style
  (3).plastic cover :ABS fire Material of withstand high temperatures
  (4).Epoxy resin
  (5).high performance insulation
  (6).Anti-corrosion, waterproof performance
  9.Main parameters:
  Input Voltage:AC 220V 230v 110v (Define the voltage)
  Output voltage:AC 12V / 24V (Define the voltage)
  Power range:25VA-6.5KVA
  10.How to design Transformer ?

When you need to design a transformer,

we must know the mainly below parameters to be customized:GREWIN's Custom

Transformers ,plz kindly check attached file:

GREWIN's Custom Toroidal Transformers

I.Transformers Test: 100% test before the shipment

Over 50 sets toroidal/annular/ ring coil winding machines, 3 EI type transformer lines, 2 sets of vacuumannealing furnaces, A set of nitrogen and hydrogen production equipment as below:
. Automatic Winding Machine
. Semi-automatic Winding Machine
. Toroidal Winding Machine
. Insert Lamination Machine
. Wave Soldering Machine
. Plastic Termal Ultraviolet Machine
. Domino Ink Jet Printing Machine

Transformer Multitester for High & Low Frequency
Layer Insulation Withstand Voltage Tester

A.

1. Installation:
Wire leads mounting type with center hole.
2.Application:
Especially low-hum and low-dispersing construction
Low-level of induction
High-grade design casing possible
Statically shield winding and magnetical shield winding optional .

Be used widely such as audio equipment,communication,new energy areas,Electrical control,Cable

TV network etc.

4.Warning
Under no circumstances should both ends of the fixing bolt simultaneously contact the metal chassis

or framework as this would create a potentially dangerous 'shorted-turn'.
5.Note
The above-mentioned toroidal transformer is frequently-used, we can also manufacture the products

by customer design. And the specification is for reference, if has the change further, please take the

material object as the standard.
6.GREWIN'S Dimension :External diameter: 55mm-300mm, height :13mm-130mm, Efficiency: 75-98%
we can design the appropriate products according to customers' requirments such as installation dimension, input and output voltage,power...etc.)
B.Dual 110V Power Transformer:
For the international market request, these types of the GREWIN Transformers are designed into dual primaries for 110V. No matter what about your local voltage is 110V or 220V, you should use them. Below

are the methods for using:
1.If you are using 110VAC(such as Taiwan, US), Please parallel the two primaries 110V. Please pay

attention to the terminals of 110V must be short circuit, and the terminals of 0V must be short circuit.

2.If you are using 220VAC(such as Hongkong, China Mainland, Europe), Please series the two primaries. Please pay attention to one terminals of 0V must be short circuit with another terminals of 110V.

3.GREWIN has various kinds of state-of-the-art equipment, which are used in production, sampling and testing. Our equipments enable us to produce good quality products efficiently.

4.The following picture showed you about all finished toroidal transformer production line and package with export standard carton and strong pallets:

5.About us:

Tianjin Grewin Technology Co.,ltd. has always placed great emphasis on our core

business philosophy "Quality and Honesty First ".

6.Below is our toroidal transformer's catalogue with much advantages

in our market:

7.Flow chart of trading activities:

8.Payment terms:

(1). T/T 100% or 50% deposit by T/T in advance, balance amount to be paid 7 days before delivery.

(2). By irrevocable L/C at sight, to be issued immediately against confirmed order.

(3). Payment by T/T, if order amount is less than USD 20,000.

9.Sample terms:

(1). Samples will be sent subject to advance payment to cover the courier charge and samples charge.

(2). You are pleased to instruct your courier company to pick up samples in our TianJin, China office at your expenses. For pick-up details, please advise your courier company to contact us.

(3). Delivery time 3-10 working days.

cathy

Tianjin Grewin Technology Co.,Ltd.
Mail:cathy(at)grewin-tech.com
skype:grewin.ella

Wechat: mumude7

QQ:3320234860
TEL:86-22-84943756
FAX:86-22-85909471
MT: 86-15127622290

1.Our manily manufacture:
*High Frequency Transformers,
*EI Power Transformers,
*toroidal transformer,
*pcb mount encapsulated power toroidal transformer,
*welding toroidal transformer,
*audio amplifier toroidal transformer,
*electronic toroidal transformer for lighting,
*planar transformer,
*inductor.

2.We have abtained VDE,UL,CE,ROHS,ISO9000 Approal and SGS Audit Supplier in China,We guarantee quality is the first.

3.Our producted transformer have following advantages:
(1).Raw materials: Meet  with CE and ROHS approval.
(2).Copper wire:We purchased wire from the biggest supplier in China with good reputation.The wire performance is stable.
(3).Silicon steel: with excellent performance with low loss .
(4).Operating workers:Our workers has more than 5 Years operating and winding experience.

4.Our export market: North America, South America, Europe and other countries market

5.About us:

Tianjin Grewin Technology Co.,ltd. has always laying great emphasis on our core business philosophy "Quality and Honesty First ". Due to continuous innovative research and development, our products have meet the technical standards and safety standards , which are efficient and environment-friendly. As a professional leading and a main exporter of a wide variety of electronic components in China for many years, we adhere to new products, quality to meet the needs of you and welcome all of you to negotiate!
